Fully Enclosed Fiber Laser Cutting Machine

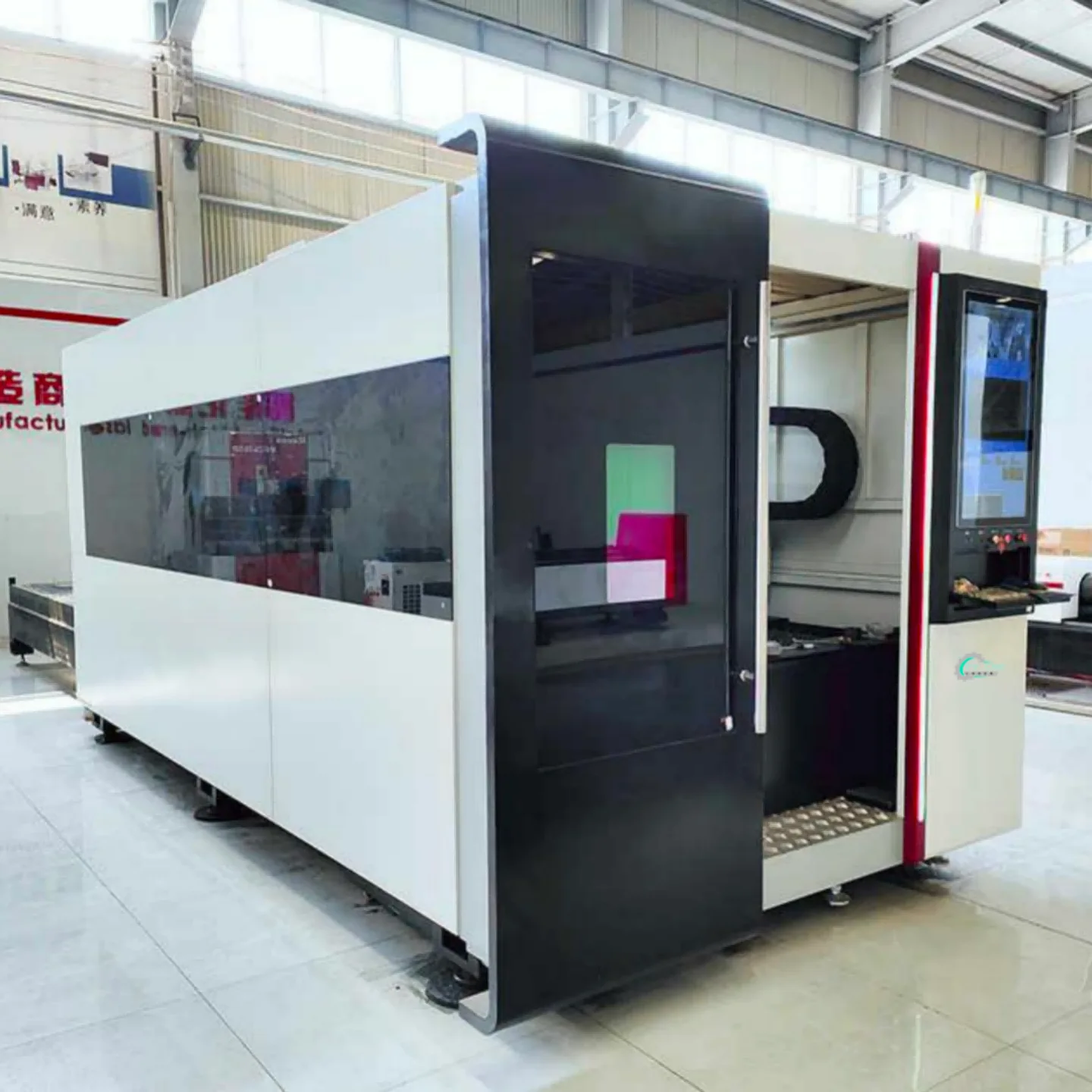

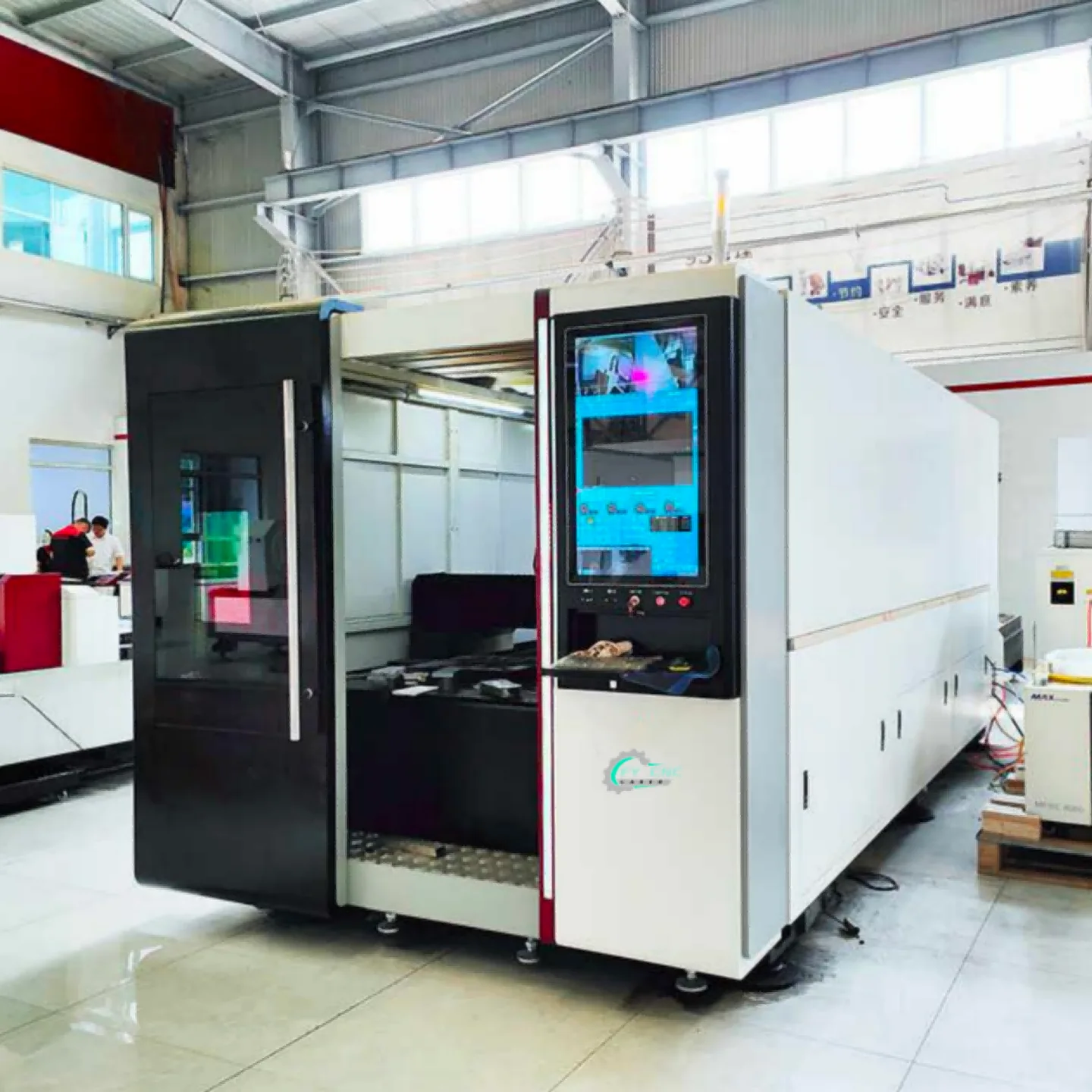

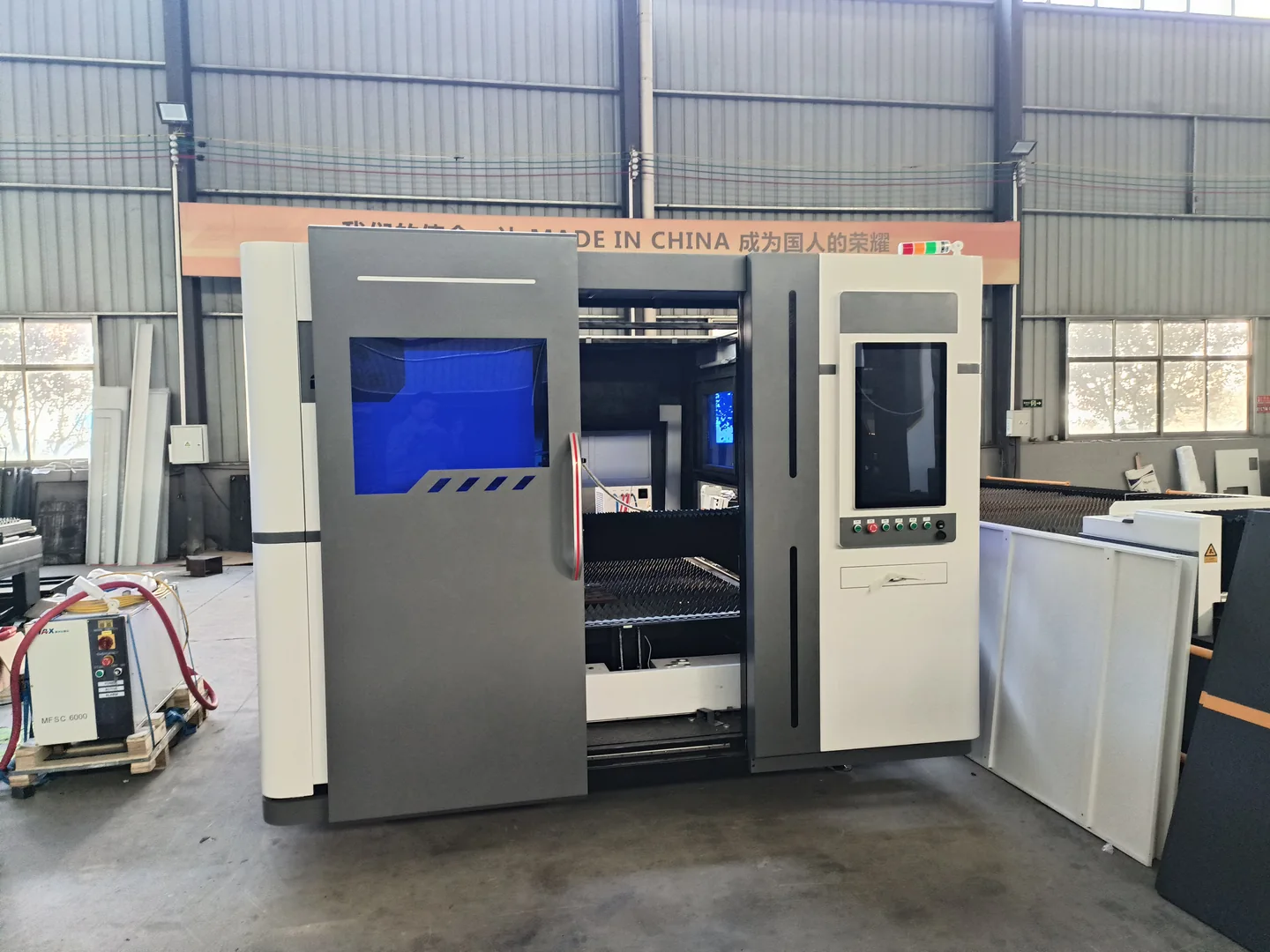

An open machine prioritizes direct sheet access. A fully enclosed design defines a protected cutting zone and coordinates doors, viewing arrangements and extraction. The correct choice depends on the process and site requirements.

Local FY-LCM01-C configurations include full-cover and exchange-table arrangements. The exact table layout and included equipment must be stated in the quotation; do not assume every configuration is identical.

Destination compliance and documentation must be confirmed for the ordered machine. A full enclosure alone is not evidence of certification. Tell FYXFER your destination and required conformity documents.

These are not assumed to be standard. Tell us which functions you need so compatibility, machine layout and supply availability can be assessed separately.

That depends on the cutting gas and pneumatic equipment. For compressed-air cutting, compressor capacity, drying and filtration must match the process. Nitrogen or oxygen cutting has different supply requirements.

Agree a trial using the material grade, thickness and part drawing that represent your production. Define the acceptance criteria before the trial, then review:

1. Material and settings: record the material, thickness, laser source and power, assist gas and relevant process settings with the sample.
2. Part quality: check critical dimensions, holes and contours, edge finish, dross and any required secondary finishing against the agreed drawing.
3. Repeatability: agree how many parts to inspect and which measurements to record; one attractive sample does not demonstrate consistent batch production.
4. Job time: record cutting and piercing time separately from loading, table movement, unloading and any finishing included in the production target.

Confirm whether the trial uses the proposed machine configuration or a reference setup, and document any differences before accepting the result. Trial conditions and acceptance limits are agreed for the project; they are not universal FY-LCM01-C performance guarantees.

Estimate output from the complete production cycle for a representative sheet or batch. Include loading, positioning, piercing, cutting, any table transfer, unloading and required finishing. State which operations can overlap in the proposed layout. Compare quotations using the same drawing, material, thickness and finished-part requirements; laser power or maximum travel speed alone does not define parts per shift.
