Large working area
Custom bed dimensions accommodate the sheet formats and parts used in your production.
OPEN GANTRY / LARGE-FORMAT SHEETS
Gantry Fiber Laser Cutting Machine
More room for the sheet. More freedom to load.

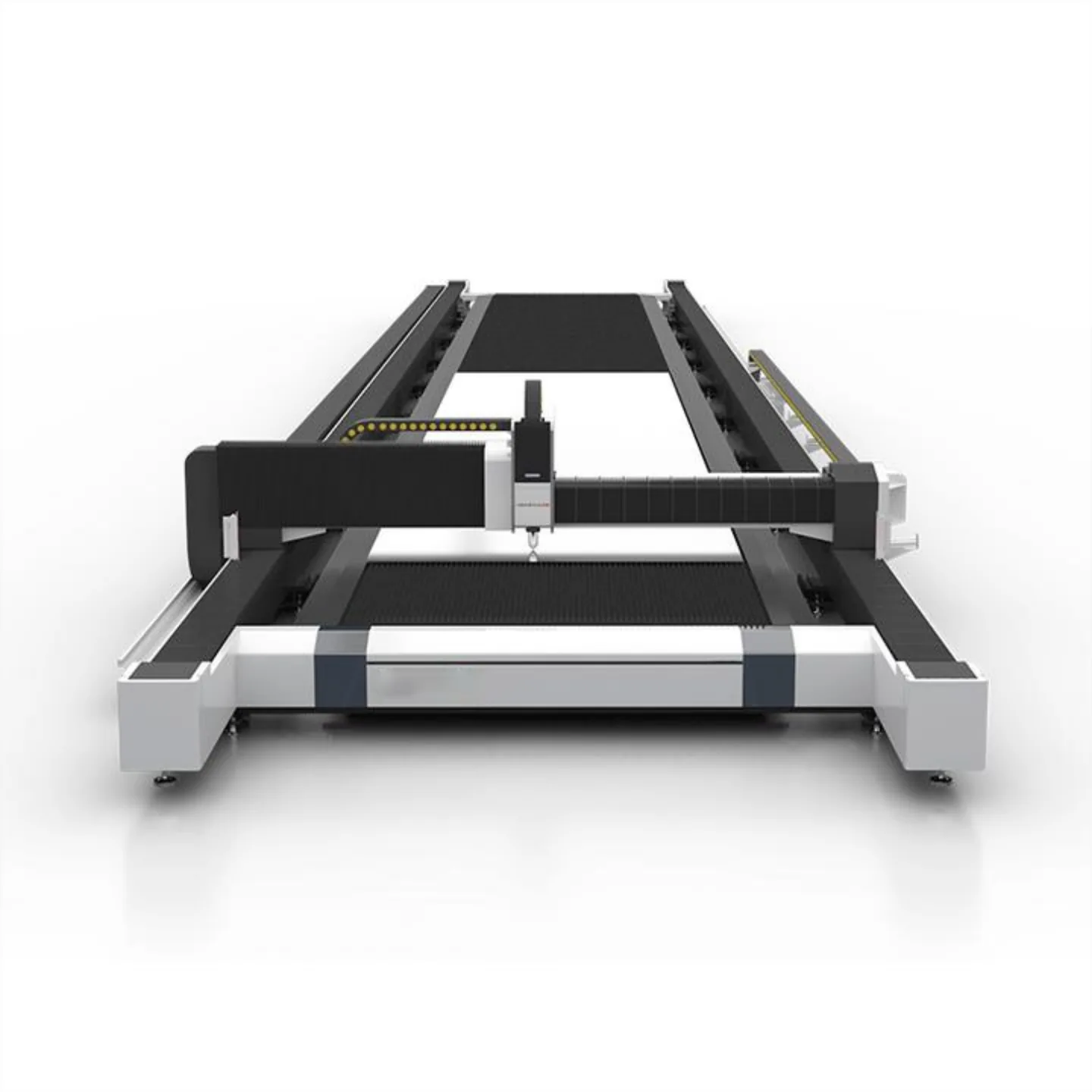

FY-LCM01-G uses an open gantry layout for large-format metal fabrication. The long bed and accessible working zone support practical sheet handling. Specify the cutting area, loading route and production requirement together.
- Large working area
- Flexible loading layout
- Industrial process matching
Configuration at a Glance
- Available Laser Power
- 3 kW reference configuration; other powers on request
- Laser Source
- Raycus / MAX, according to configuration
- Working Area
- 2000 × 6000 mm reference; custom bed dimensions
- Positioning Accuracy
- Defined by bed size, drive system and acceptance conditions
- Maximum Travel Speed
- Defined by bed size, drive system and acceptance conditions
- CNC Control System
- XC3000S or application-matched control package
Designed Around Your Workflow
Flexible loading layout
An open structure allows the loading method and surrounding handling equipment to be planned together.
Industrial process matching
Review source power, gas supply and extraction against the materials and daily workload.
Technical Specifications
These are configuration references, not one universal specification. Laser power, bed size, components and utilities must be matched in the final proposal. Exact speed, accuracy, weight and shipping dimensions are confirmed for the selected machine.
| Machine Model | FY-LCM01-G |
|---|---|
| Laser Type | Fiber laser |
| Available Laser Power | 3 kW reference configuration; other powers on request |
| Laser Source | Raycus / MAX, according to configuration |
| Working Area | 2000 × 6000 mm reference; custom bed dimensions |
| X / Y Axis Travel | Confirmed in the final configuration |
| Positioning Accuracy | Defined by bed size, drive system and acceptance conditions |
| Repeat Positioning Accuracy | Defined by bed size, drive system and acceptance conditions |
| Maximum Travel Speed | Defined by bed size, drive system and acceptance conditions |
| Maximum Acceleration | Confirmed in the final configuration |
| Cutting Thickness | Depends on power, material and cutting process |
| Cutting Materials | Suitable metals after material and process review |
| Laser Cutting Head | Raytools / Empower, according to configuration |
| CNC Control System | XC3000S or application-matched control package |
| Servo Motor | Delta / Panasonic options; matched to the drive system |
| Linear Guide Rail | Confirmed in the final configuration |
| Rack & Pinion | Confirmed in the final configuration |
| Reducer | Confirmed in the final configuration |
| Water Chiller | Hanli or specified matching configuration |
| Assist Gas | Nitrogen, oxygen or prepared compressed air, according to process |
| Electrical Supply | Confirmed in the final configuration |
| Total Connected Load | Confirmed in the final configuration |
| Machine Dimensions | Confirmed in the final configuration |
| Packing Dimensions | Confirmed in the final configuration |
| Net Weight | Confirmed in the final configuration |
| Gross Weight | Confirmed in the final configuration |
| Machine Bed | Welded steel structure; layout depends on selected working area |
Cutting Capacity
Cutting thickness depends on laser power, material grade, assist gas, cutting speed and required edge quality. Contact FYXFER for a recommended configuration.
Materials We Can Cut
Carbon SteelStainless SteelAluminumBrassCopperGalvanized SteelMild SteelMetal Alloys
Suitability is reviewed for the exact alloy, coating and thickness. Reflective metals require a compatible laser source and cutting process.
Tell Us Your Material & Thickness
Send a drawing or sample requirement to define the edge quality, hole size and production rate you need.
Get a QuoteInside the Machine
Photographs show available platform components and configuration examples. The final component list is specified in your quotation.
Laser Source
Choose the source around the material, thickness, reflective-metal requirements and production target. Brand and power are specified together.
Laser Cutting Head
The focusing head and height control are matched to laser power, assist gas and the intended cutting process.
CNC Control System
A CNC control package coordinates the cutting path, motion and process settings. Confirm software and controller compatibility in the proposal.

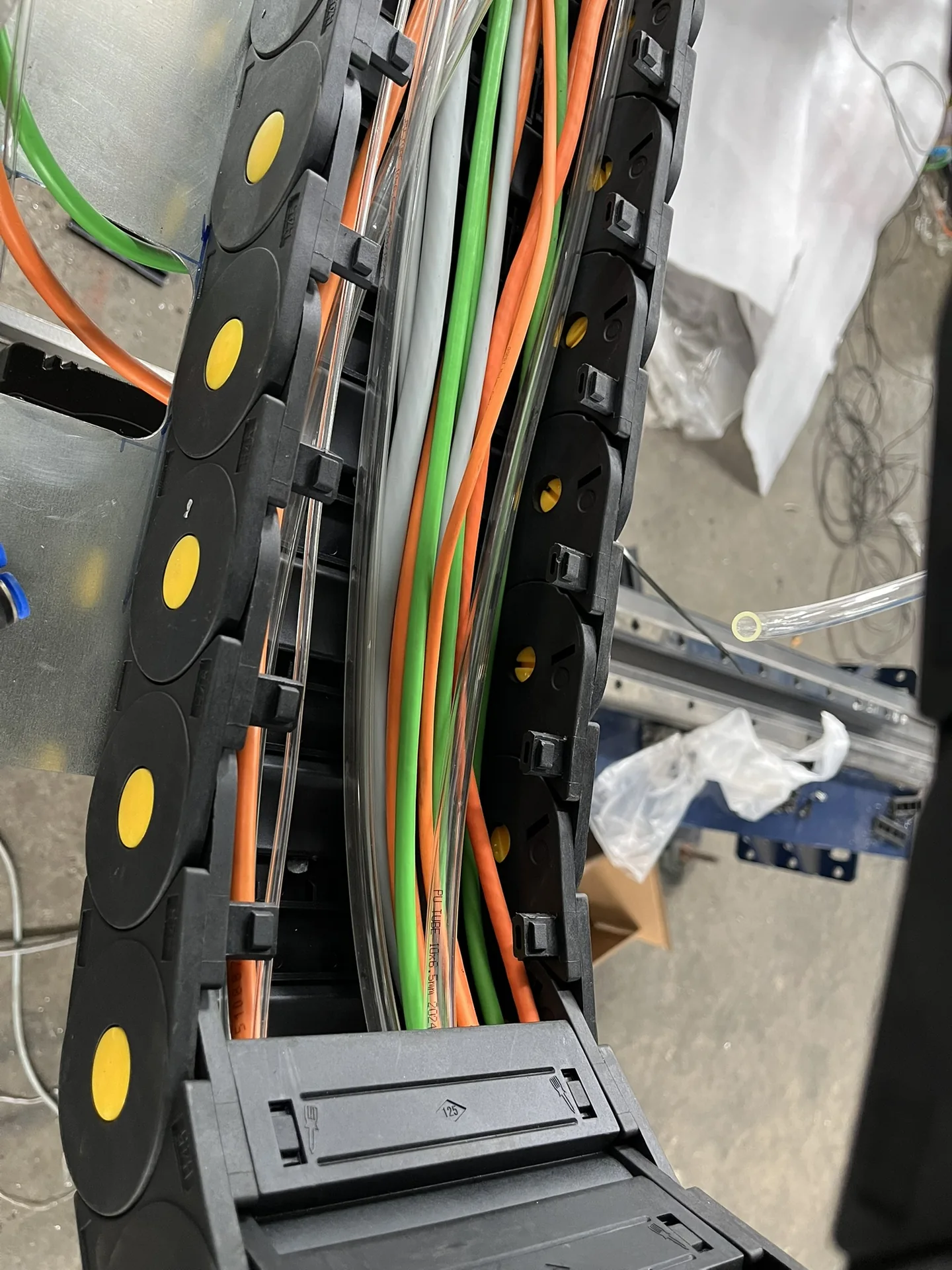

Servo, Guide Rail & Rack
The servo drive, guides, rack and reducer work as one motion system. Their selection follows the bed size and required positioning performance.
Cooling & Electrical Systems
Chiller capacity, electrical cabinet and connected load are matched to the chosen laser source and destination power supply.
Gas & Pneumatic System
Gas type, purity, pressure, filtration and flow are defined from the material and edge-quality target.

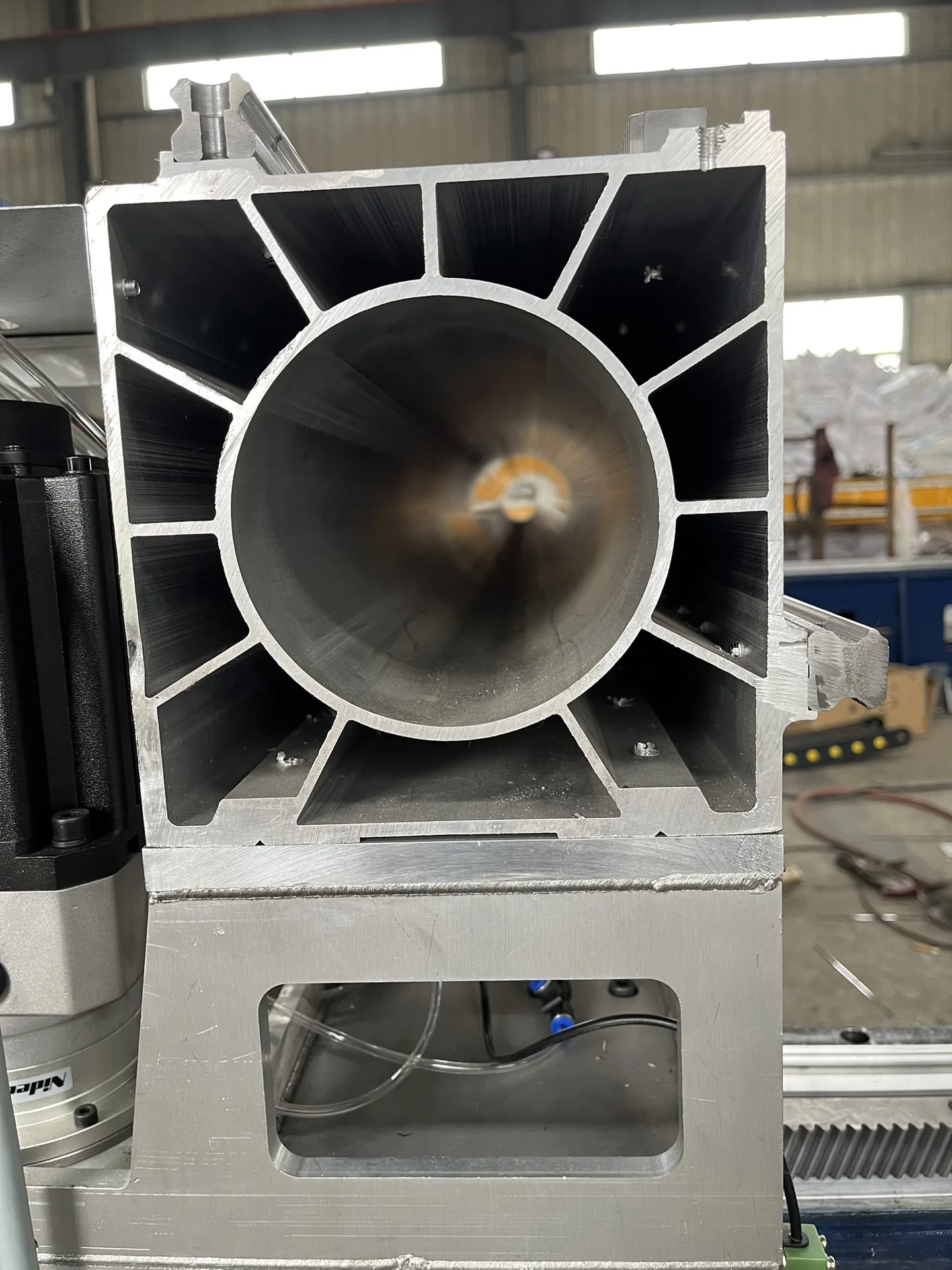

Machine Bed
A welded bed supports the sheet and moving gantry. Slat layout, extraction and access are coordinated with loading and maintenance.
Machine Views & Workshop Details
Optional Configurations
Optional items are quoted separately after engineering review. They are not all included as standard equipment.
Exchange Table
Review loading space, table transfer and extraction layout for an optional exchange-table configuration.
Dust & Fume Extraction
Size the extraction system for the cutting process, enclosure layout and site installation.
Air Compressor & Air Preparation
Compressor, dryer and filters can be specified for a suitable compressed-air cutting process.
Voltage Adaptation & Stabilizer
Review the local voltage, frequency and supply stability before selecting auxiliary electrical equipment.
Working Area & Laser Power
Select a different bed size or source power after reviewing sheet dimensions, thickness and output.
Protective Enclosure
Discuss guarding, access doors, viewing arrangements and extraction as one engineered configuration.
Applications
Machinery & Structural Parts
Large-format plate components for equipment and metal structures.
Sheet Metal Fabrication
Profiles, brackets and nested sheet components for everyday fabrication.
Automotive & Agricultural Equipment
Process-reviewed production of metal parts from flat sheet.
Your Project, Supported by FYXFER
Configuration Support
Define the machine around the actual material, loading arrangement, utilities and production target.
Installation & Training
Discuss installation guidance, operator training and remote technical support as part of the supply scope.
Spare Parts & Service
Confirm consumables, maintenance requirements and spare-parts support for the selected component package.
Worldwide Delivery Planning
Review packing, destination and EXW, FOB, CIF or DAP terms in the project quotation.
Project Safety Requirements
Specify guarding and destination compliance requirements before ordering. Certification is confirmed for the supplied configuration.
Plan Your Configuration
A printable checklist in your selected language. Final specifications are confirmed in your quotation.
Download Configuration ChecklistFrequently Asked Questions
What working area should I choose?
Use your standard sheet size, largest part and loading method as the starting point. A documented FY-LCM01-G configuration has a 2000 × 6000 mm working area; other bed dimensions require review.
Can the gantry machine use higher laser power?
Higher power is reviewed as a complete configuration, including head, cooling, gas, extraction and protective measures. The reference configuration is 3 kW; request a proposal for your material range.
How is sheet loading arranged?
The open structure provides access around the bed. The final loading route, lifting equipment and exclusion area depend on your sheet weight and workshop layout.
Can the machine use nitrogen, oxygen or compressed air?
These gases are possible process choices. Selection depends on the material, edge requirements, source power and gas preparation; required pressure, purity and flow are specified separately.
Is an exchange table standard?
The gantry model documentation lists an exchange table as optional. Confirm its dimensions, loading sequence and installation footprint in the quotation.
Request Laser Cutting Solution
Share your material, thickness, sheet size and daily output. We will review the cutting process and recommend a machine configuration.
We recommend a configuration after reviewing your requirements.
