CUSTOM ENCLOSURE / APPLICATION REVIEW

Semi-Enclosed Fiber Laser Cutting Machine

Protective layout, with practical access.

A semi-enclosed arrangement can combine local protective panels with accessible sheet handling. FYXFER reviews the enclosure, extraction and loading requirements as a project configuration within the FY-LCM01 family. Final design and availability require engineering confirmation.

Targeted protective panels
Accessible working zone
Balanced project scope

Get a Quote Compare All Four Formats

Semi-Enclosed Fiber Laser Cutting Machine — Configuration visualization; final enclosure design subject to engineering review

Configuration at a Glance

Available Laser Power: Selected after enclosure and process review
Laser Source: Confirmed in the final configuration
Working Area: Configurable for the application
Positioning Accuracy: Defined by bed size, drive system and acceptance conditions
Maximum Travel Speed: Defined by bed size, drive system and acceptance conditions
CNC Control System: Confirmed in the final configuration

Designed Around Your Workflow

Targeted protective panels

Review panel positions to help contain sparks while maintaining the required loading access.

Accessible working zone

Plan operator access, sheet handling and service access around the partial enclosure.

Balanced project scope

Compare guarding, extraction and installation costs with an open or fully enclosed alternative.

Partial panels do not create a fully enclosed laser-safe system. The final risk assessment, guarding and extraction arrangements must address the complete installation.

Technical Specifications

These are configuration references, not one universal specification. Laser power, bed size, components and utilities must be matched in the final proposal. Exact speed, accuracy, weight and shipping dimensions are confirmed for the selected machine.

Machine Model	FY-LCM01 family / custom semi-enclosed configuration
Laser Type	Fiber laser
Available Laser Power	Selected after enclosure and process review
Laser Source	Confirmed in the final configuration
Working Area	Configurable for the application
X / Y Axis Travel	Confirmed in the final configuration
Positioning Accuracy	Defined by bed size, drive system and acceptance conditions
Repeat Positioning Accuracy	Defined by bed size, drive system and acceptance conditions
Maximum Travel Speed	Defined by bed size, drive system and acceptance conditions
Maximum Acceleration	Confirmed in the final configuration
Cutting Thickness	Depends on power, material and cutting process
Cutting Materials	Suitable metals after material and process review
Laser Cutting Head	Confirmed in the final configuration
CNC Control System	Confirmed in the final configuration
Servo Motor	Confirmed in the final configuration
Linear Guide Rail	Confirmed in the final configuration
Rack & Pinion	Confirmed in the final configuration
Reducer	Confirmed in the final configuration
Water Chiller	Confirmed in the final configuration
Assist Gas	Nitrogen, oxygen or prepared compressed air, according to process
Electrical Supply	Confirmed in the final configuration
Total Connected Load	Confirmed in the final configuration
Machine Dimensions	Confirmed in the final configuration
Packing Dimensions	Confirmed in the final configuration
Net Weight	Confirmed in the final configuration
Gross Weight	Confirmed in the final configuration
Machine Bed	Welded steel structure; layout depends on selected working area

Cutting Capacity

Cutting thickness depends on laser power, material grade, assist gas, cutting speed and required edge quality. Contact FYXFER for a recommended configuration.

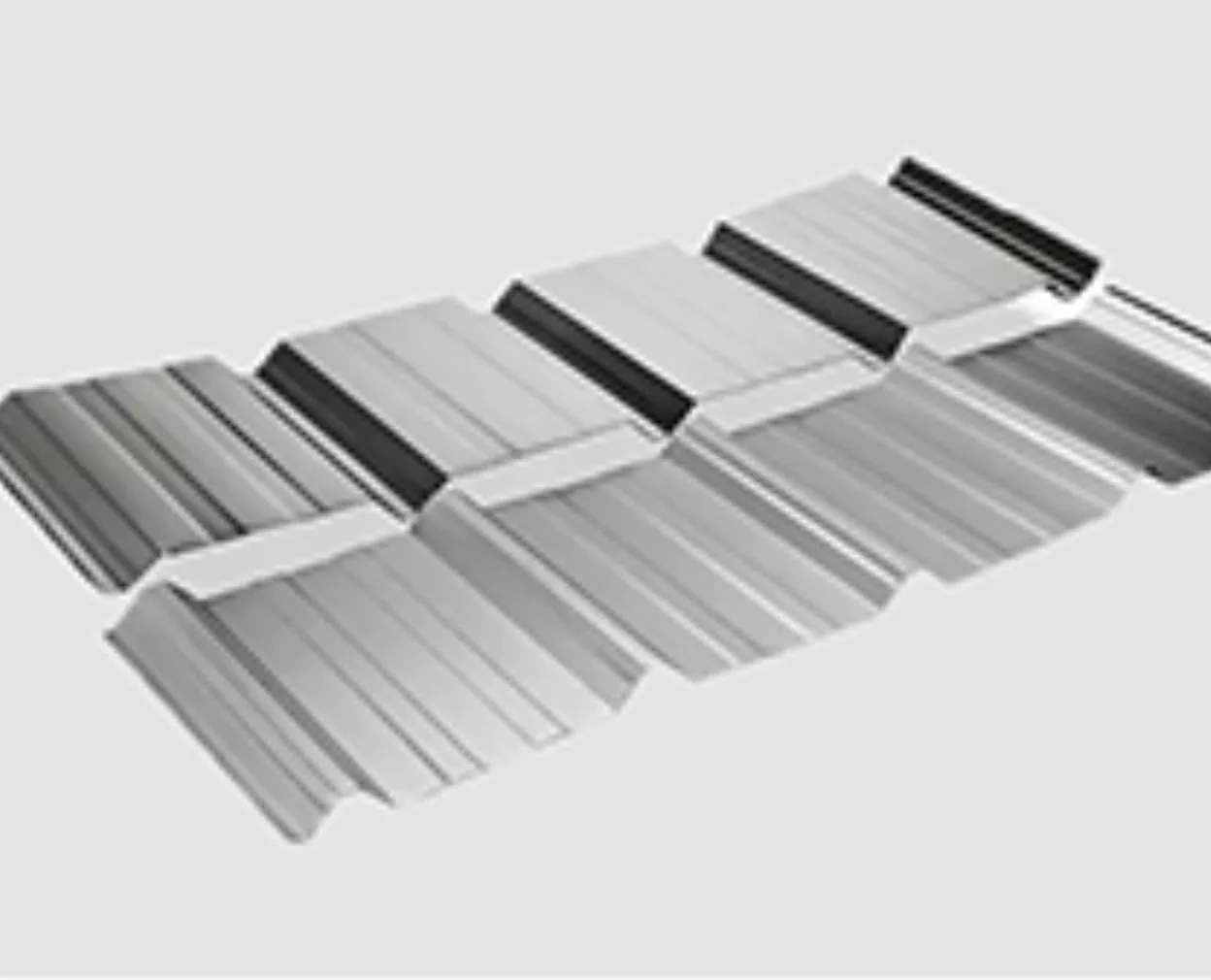

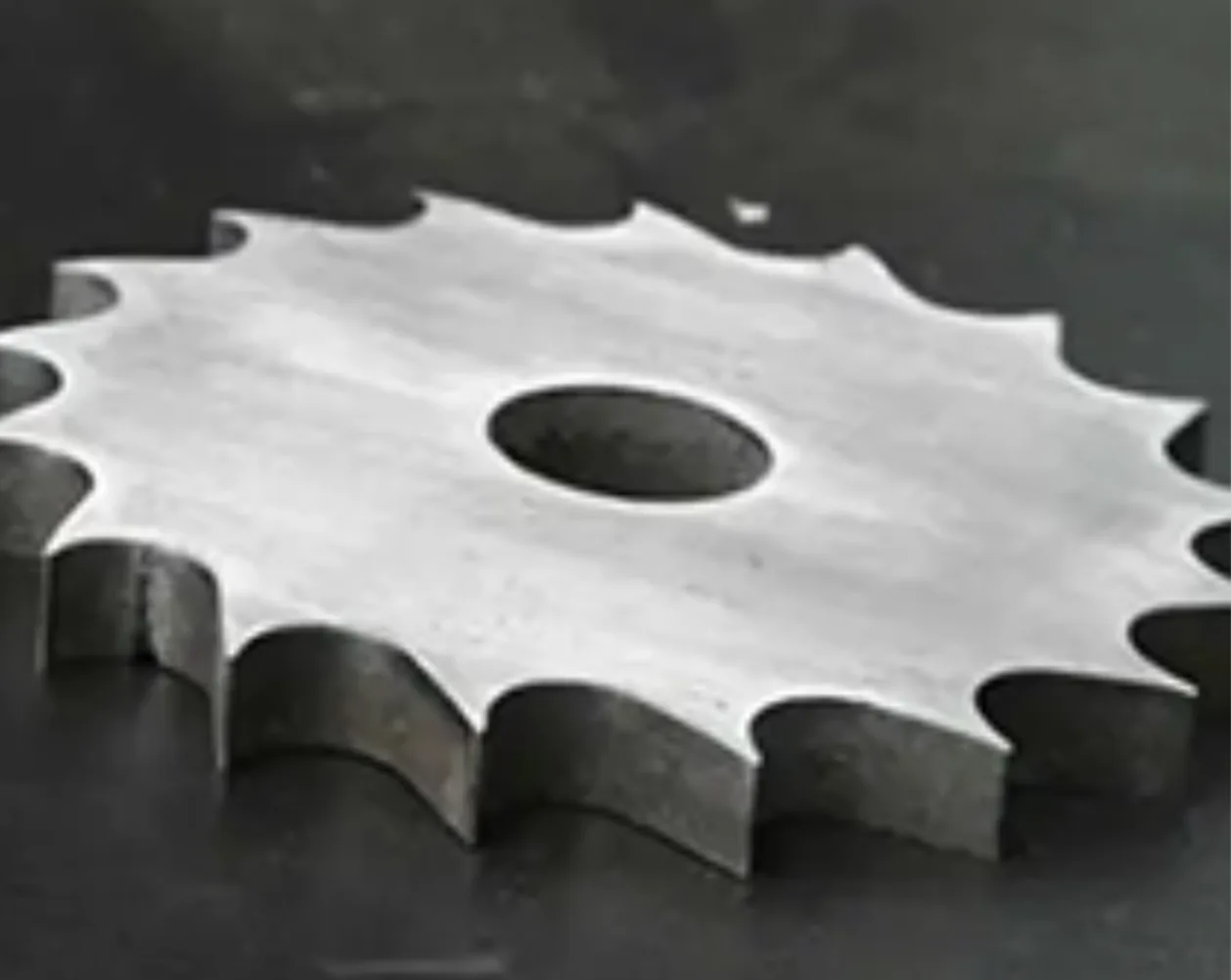

Materials We Can Cut

Carbon SteelStainless SteelAluminumBrassCopperGalvanized SteelMild SteelMetal Alloys

Suitability is reviewed for the exact alloy, coating and thickness. Reflective metals require a compatible laser source and cutting process.

Tell Us Your Material & Thickness

Send a drawing or sample requirement to define the edge quality, hole size and production rate you need.

Get a Quote

Inside the Machine

Photographs show available platform components and configuration examples. The final component list is specified in your quotation.

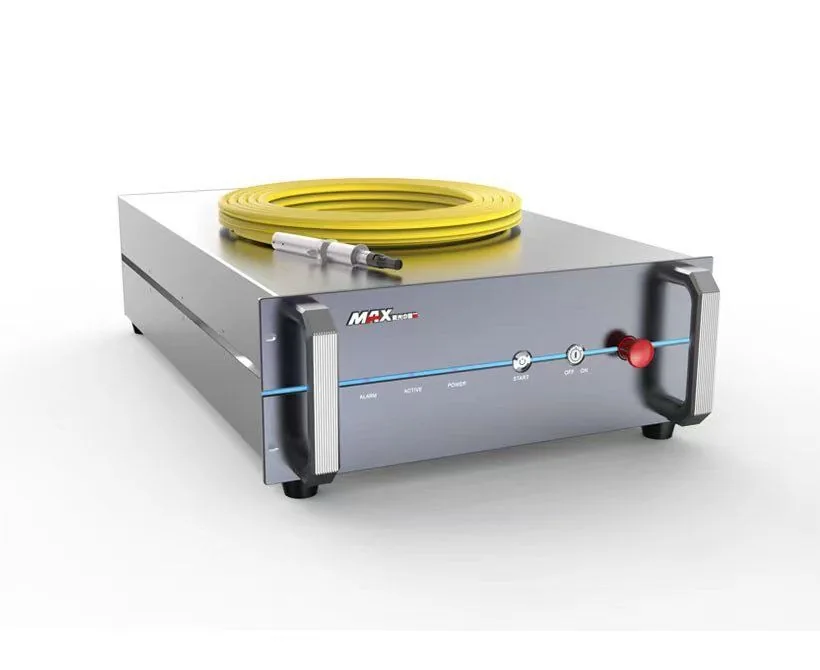

Laser Source

Choose the source around the material, thickness, reflective-metal requirements and production target. Brand and power are specified together.

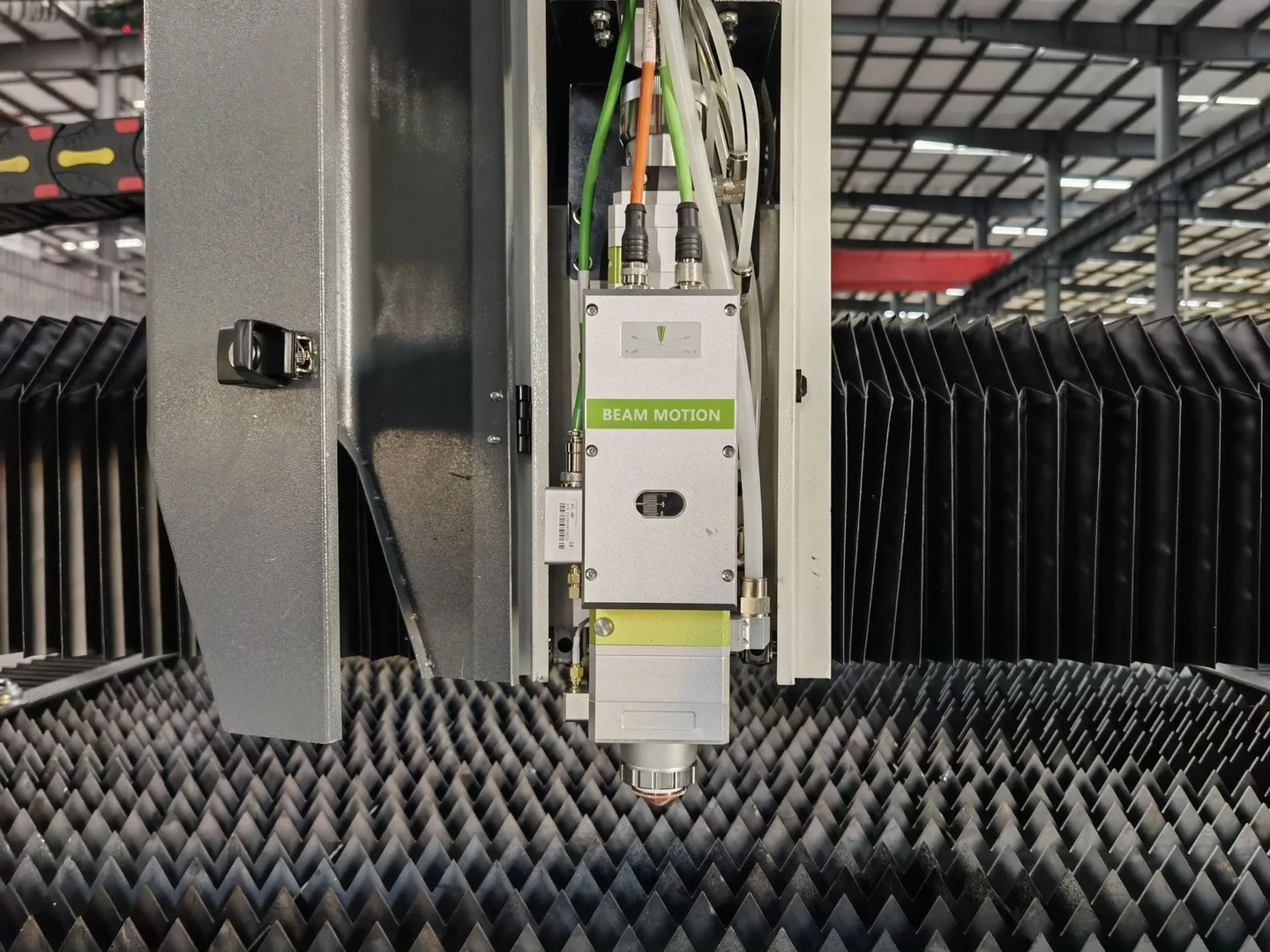

Laser Cutting Head

The focusing head and height control are matched to laser power, assist gas and the intended cutting process.

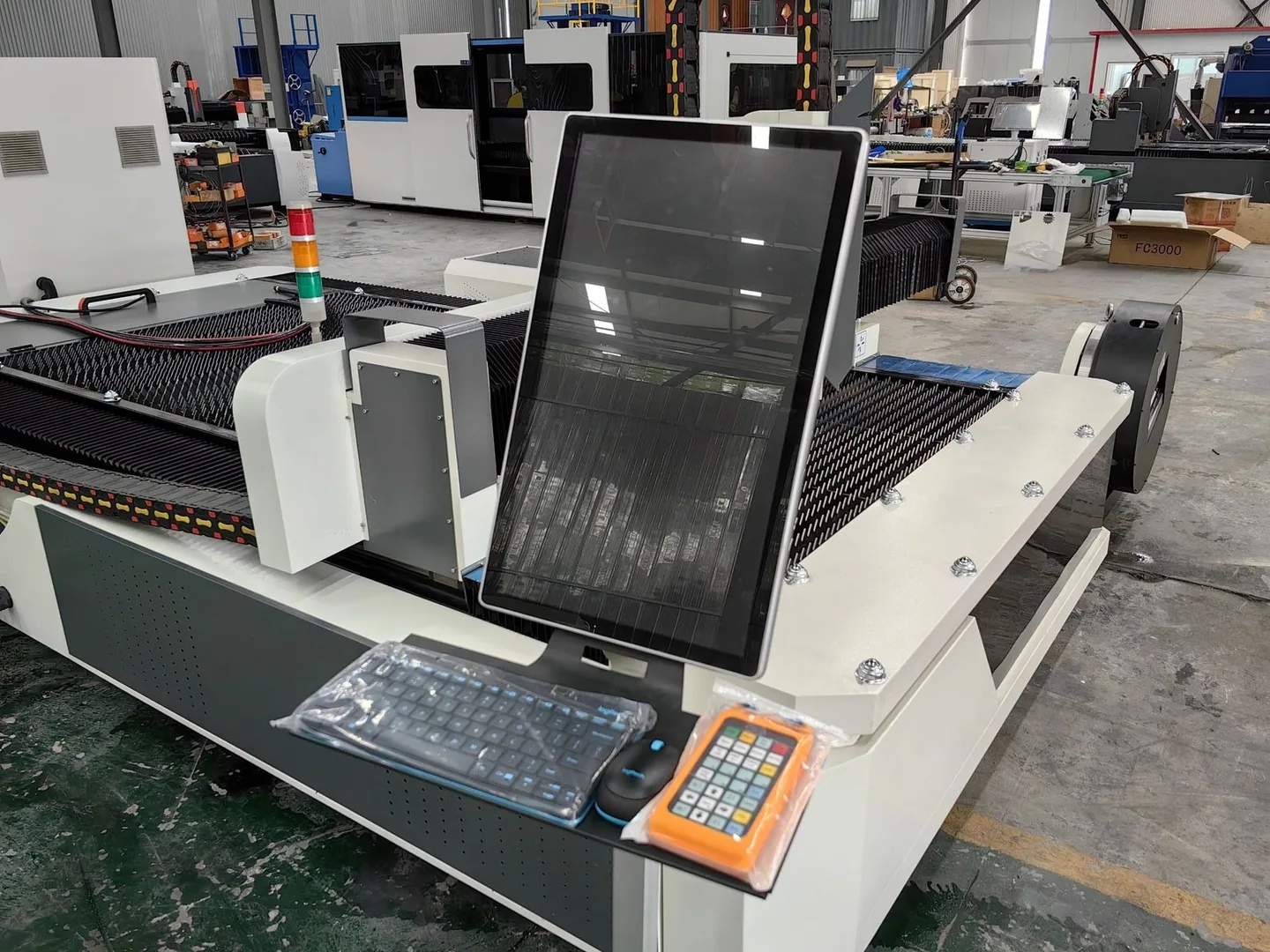

CNC Control System

A CNC control package coordinates the cutting path, motion and process settings. Confirm software and controller compatibility in the proposal.

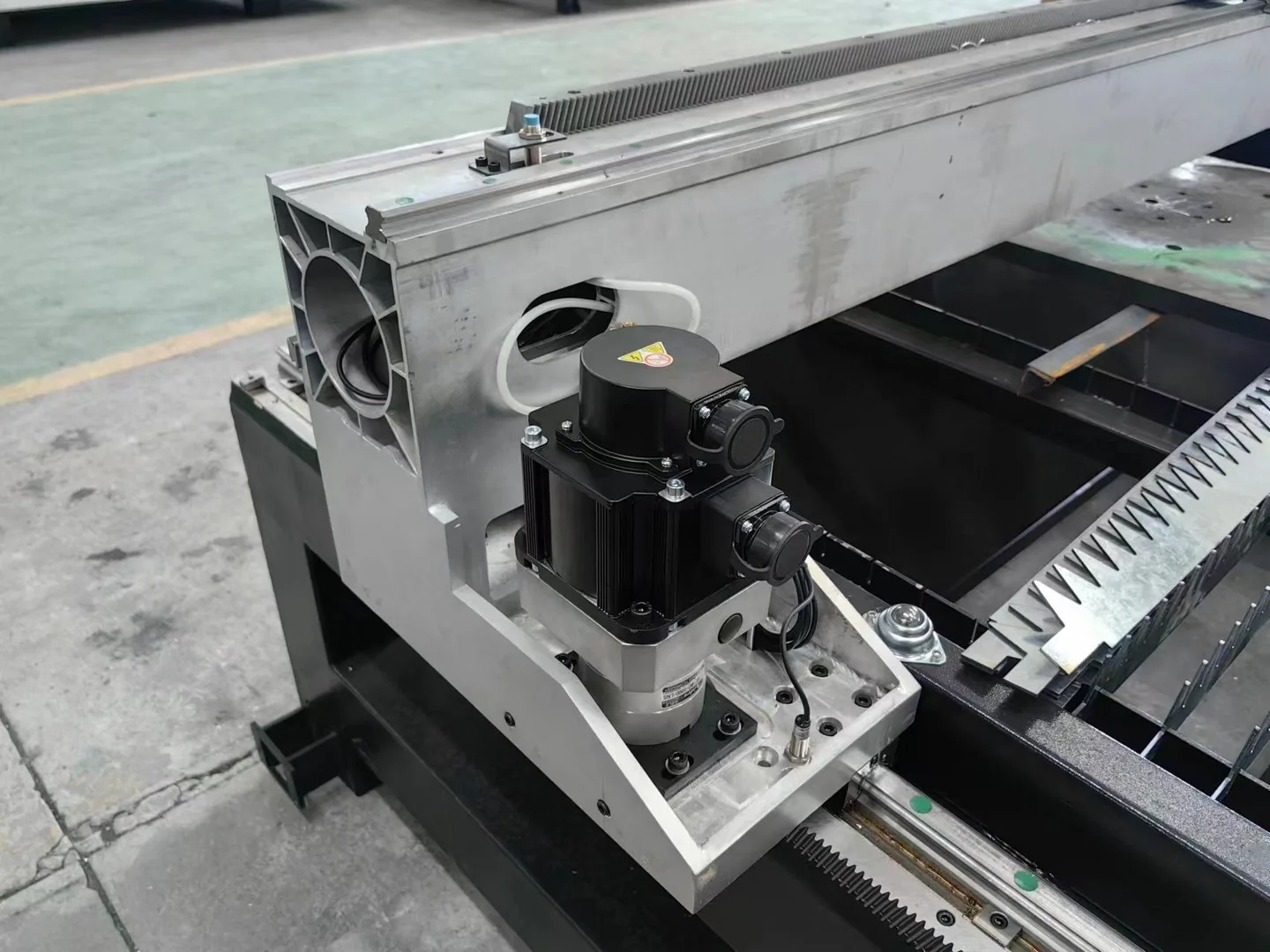

Servo, Guide Rail & Rack

The servo drive, guides, rack and reducer work as one motion system. Their selection follows the bed size and required positioning performance.

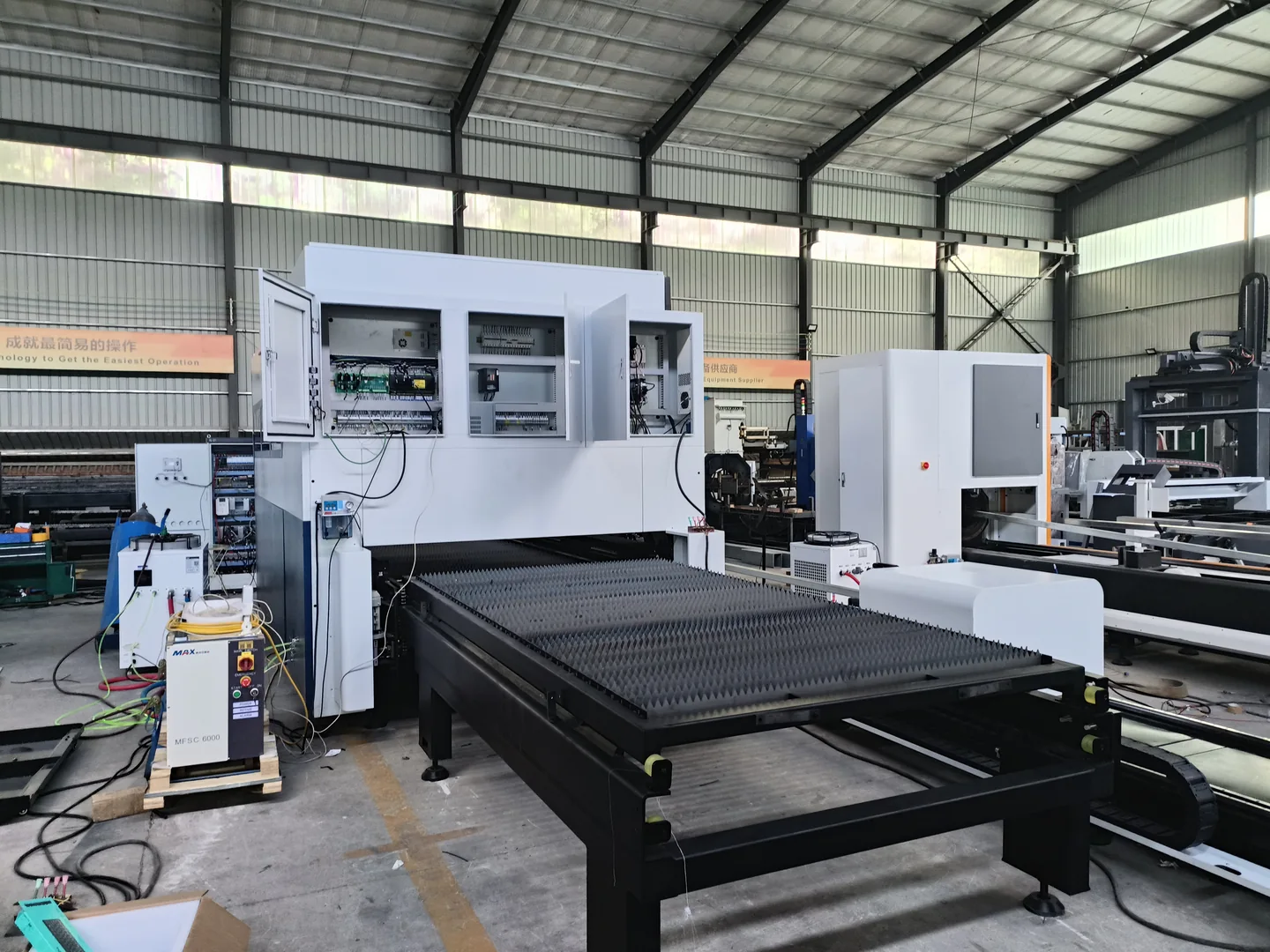

Cooling & Electrical Systems

Chiller capacity, electrical cabinet and connected load are matched to the chosen laser source and destination power supply.

Gas & Pneumatic System

Gas type, purity, pressure, filtration and flow are defined from the material and edge-quality target.

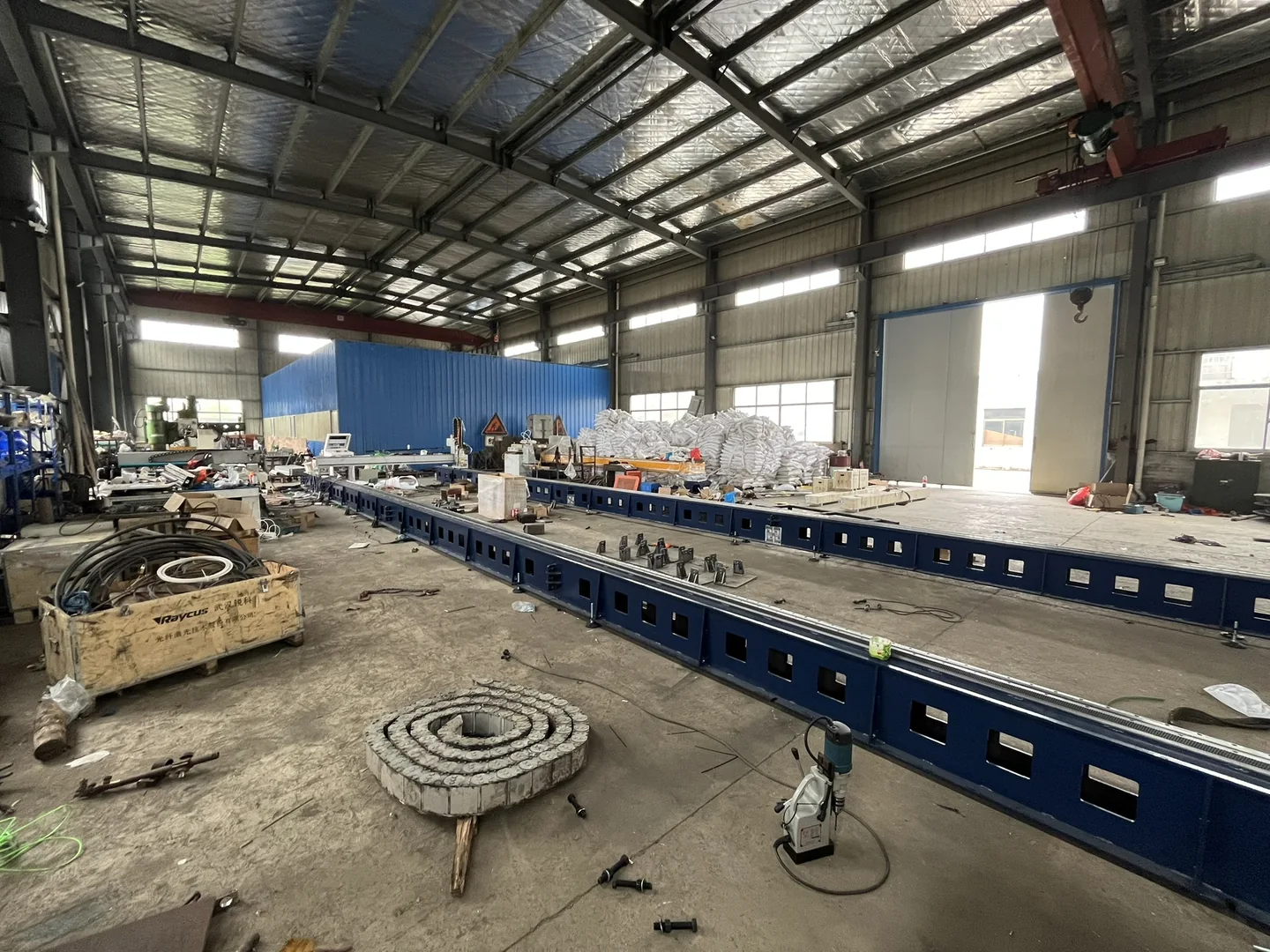

Machine Bed

A welded bed supports the sheet and moving gantry. Slat layout, extraction and access are coordinated with loading and maintenance.

Machine Views & Workshop Details

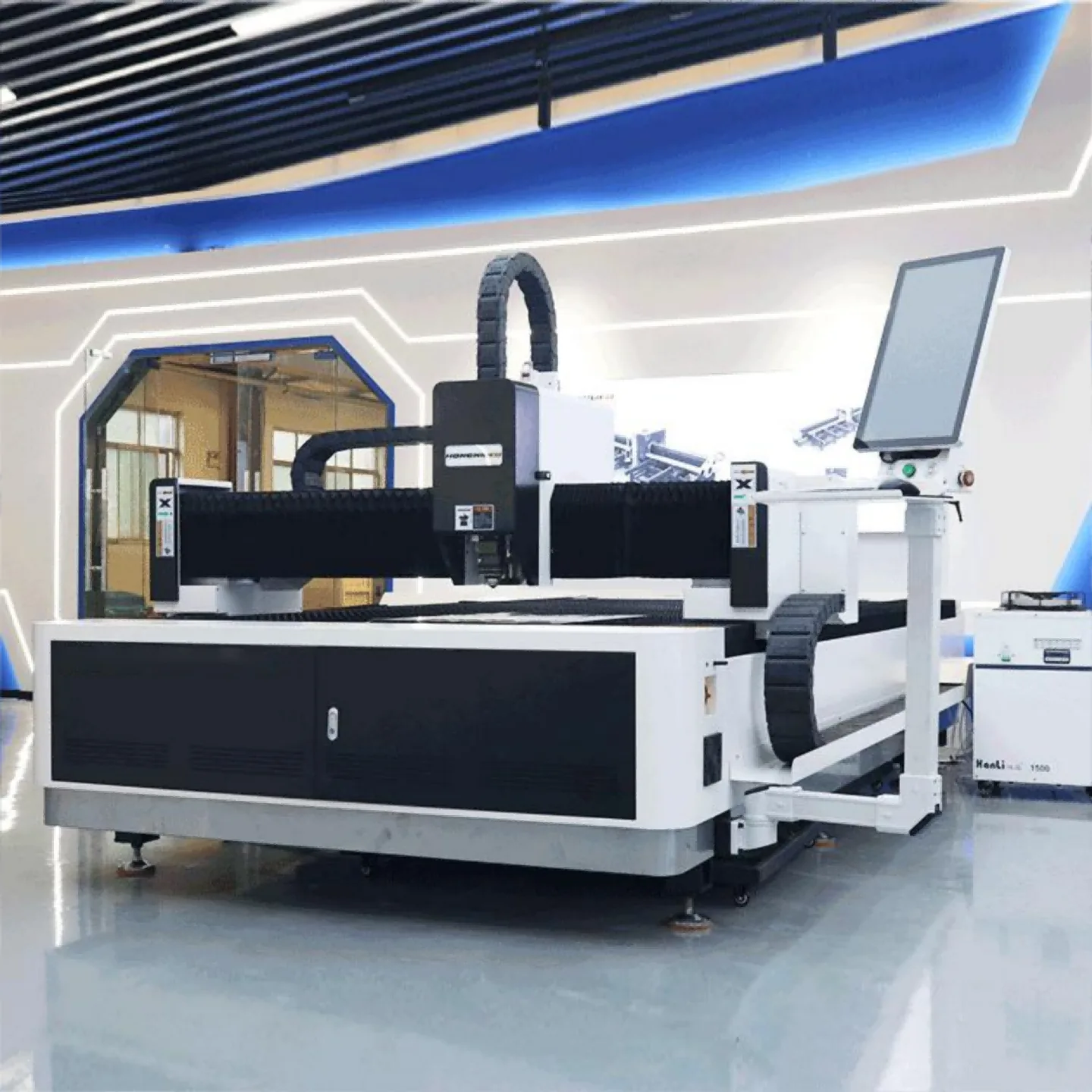

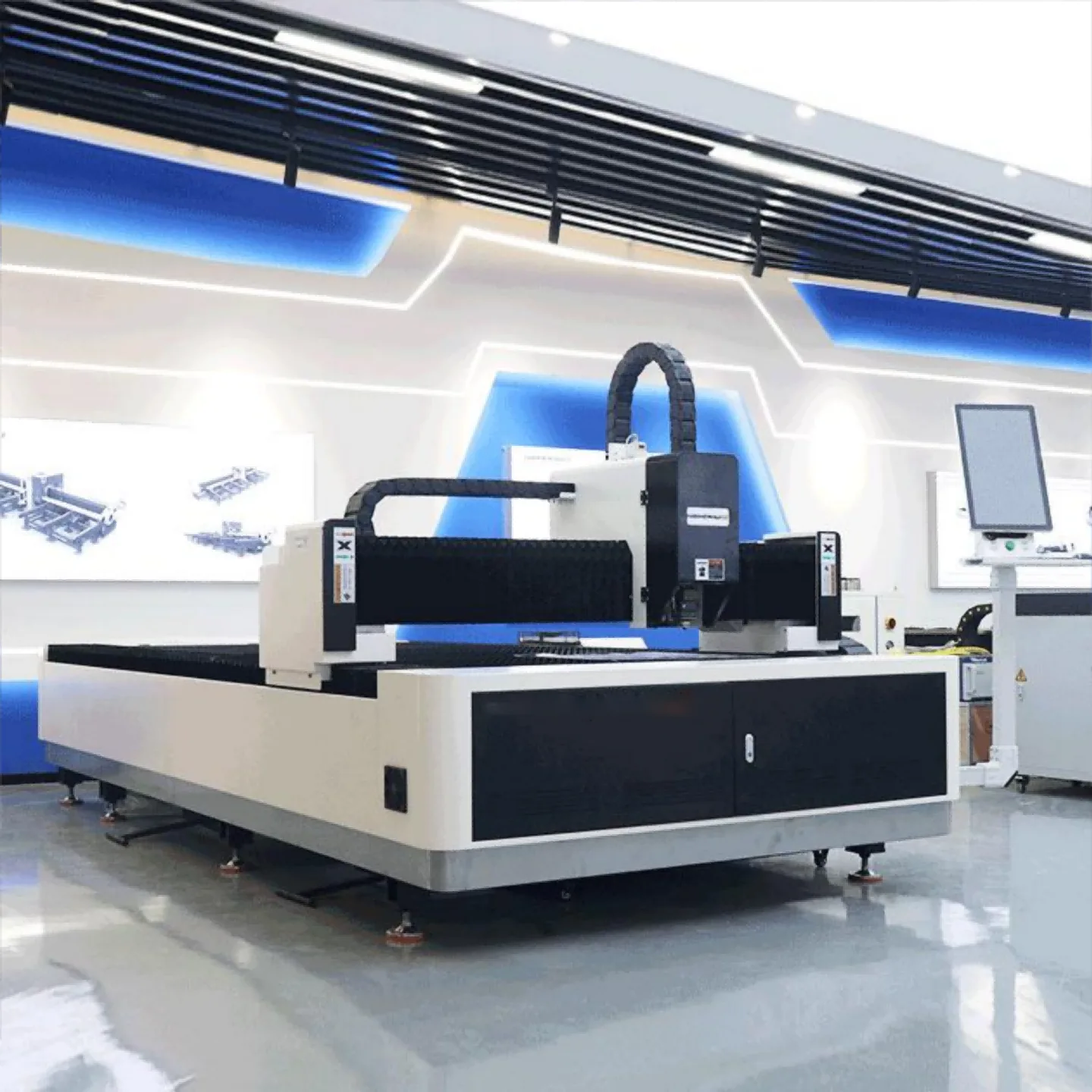

Reference platform photograph; not a delivered semi-enclosed machine

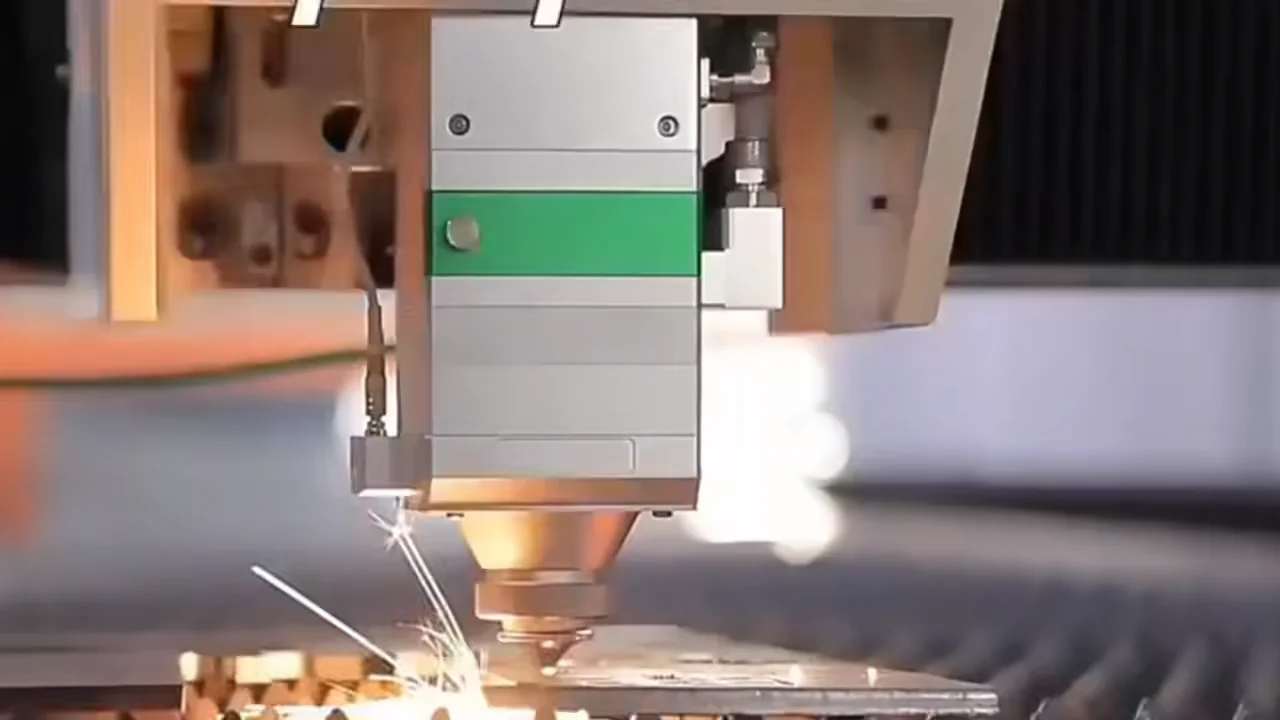

Cutting operation on an open reference platform; protective enclosure differs by configuration.

Optional Configurations

Optional items are quoted separately after engineering review. They are not all included as standard equipment.

Exchange Table

Review loading space, table transfer and extraction layout for an optional exchange-table configuration.

Dust & Fume Extraction

Size the extraction system for the cutting process, enclosure layout and site installation.

Air Compressor & Air Preparation

Compressor, dryer and filters can be specified for a suitable compressed-air cutting process.

Voltage Adaptation & Stabilizer

Review the local voltage, frequency and supply stability before selecting auxiliary electrical equipment.

Working Area & Laser Power

Select a different bed size or source power after reviewing sheet dimensions, thickness and output.

Protective Enclosure

Discuss guarding, access doors, viewing arrangements and extraction as one engineered configuration.

Applications

Electrical Cabinets & HVAC

Sheet components for enclosures, panels and ventilation equipment.

Sheet Metal Fabrication

Profiles, brackets and nested sheet components for everyday fabrication.

Kitchen Equipment & Furniture

Stainless-steel panels, fittings and furniture components.

Your Project, Supported by FYXFER

Configuration Support

Define the machine around the actual material, loading arrangement, utilities and production target.

Installation & Training

Discuss installation guidance, operator training and remote technical support as part of the supply scope.

Spare Parts & Service

Confirm consumables, maintenance requirements and spare-parts support for the selected component package.

Worldwide Delivery Planning

Review packing, destination and EXW, FOB, CIF or DAP terms in the project quotation.

Project Safety Requirements

Specify guarding and destination compliance requirements before ordering. Certification is confirmed for the supplied configuration.

Plan Your Configuration

A printable checklist in your selected language. Final specifications are confirmed in your quotation.

Download Configuration Checklist

Frequently Asked Questions

What is a semi-enclosed laser cutting machine?

It uses a partial protective enclosure while preserving selected access to the sheet and machine. Panel height, openings, extraction and operating access are defined by the project.

Is there a fixed semi-enclosed model code?

This page covers a custom configuration in the FY-LCM01 family. The final model designation, enclosure design and supply availability are confirmed after engineering review.

Does a partial enclosure provide the same protection as a full cover?

Protection depends on the complete design. A partial enclosure must not be treated as equivalent to a fully enclosed laser-safe system. Access control and other protective measures remain part of the installation review.

Will the enclosure remove all cutting fumes?

Panels alone do not remove fumes. Extraction airflow, capture points, filtration and the workshop installation must be designed around the actual cutting process.

Can you adapt the enclosure to our loading method?

Share your sheet dimensions, loading route and available space. FYXFER can review the access concept and quote a feasible configuration after engineering confirmation.

Request Laser Cutting Solution

Share your material, thickness, sheet size and daily output. We will review the cutting process and recommend a machine configuration.

We recommend a configuration after reviewing your requirements.
